Chapter Eleven — SGML Functions (continued)
Page breaks in HTML are normally set by using the CSS page-break-before and page-break-after properties. For HTML formatted with Novaworks tools, page fields are employed which structure the information around the actual break to allow the user to control the content of the page header and footers.
The Page Break Object allows a source object to be mapped and processed. Page breaks do not have to be in field format but the capabilities for editing and display increase dramatically when using fields.
To use the function, the object must be mapped and a Page Break Object handle will be returned.
In addition, page break field code can be created.
Page Break Fields are using with in Novaworks Page View editors to provide control of HTML pages in a manner similar to a word processor. They can be managing in groups, renumbered, sectioned, etc.
When creating or accessing the code for page break fields, the area is broken into three main parts: the container, the footer and the header. The contain has the field control code, meta data and divisions to group the sections. The header and footer consist either of free flowing HTML or a table of one to three columns (usually one row). If the field is a combination header/footer then the actual CSS page break code is place are the start of the second division.

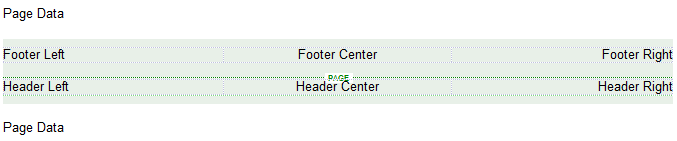

In the page editor, the code appears as follows (in a browser the shading and marks do not appear):
A sample container is as follows:
<!-- Field: Page -->
<DIV STYLE="margin-top: 12pt; margin-bottom: 6pt">footer</DIV>
<DIV STYLE="page-break-before: always;
margin-top: 6pt; margin-bottom: 12pt">header</DIV>
<!-- Field: /Page -->
Notice this container does not have the tables for the header and footer.
The table below outlines key names for the field data in addition for position information.
A number of function share property key names either as the primary name in a list or as column names in a table. Numeric data is in the form of a decimal or hexadecimal string as inficated. The items are as follows:
| Key Name | Description | ||||
| Basic Information: | |||||
| s_x | Zero-based start X position as decimal string. | ||||
| s_y | Zero-based start Y position as decimal string. | ||||
| e_x | Zero-based end X position as decimal string. | ||||
| e_y | Zero-based end Y position as decimal string. | ||||
| p_no | Page number as decimal string, if provided. | ||||
| flags | Hexadecimal string representing flags (mostly as alterations and updates). Bitwise flags: HPB_ENTRY_ALTERED 0x0001 Page Has Been Edited HPB_ENTRY_DELETED 0x0002 Page Has Been Deleted HPB_ENTRY_UPDATE_MASK 0x0003 Update Mask |
||||
| type | Type of page break: Types HPB_TYPE_MASK 0x0000000F Break Type Mask HPB_TYPE_UNKNOWN 0x00000000 Unknown Break Type HPB_TYPE_FIELD 0x00000001 Field Style Page Break HPB_TYPE_FIELD_CAPTION 0x00000002 Field Style Page Caption HPB_TYPE_EDGARIZER 0x00000003 EDGARizer Style HPB_TYPE_GENERAL 0x00000004 Unknown Break Style CSS HPB_TYPE_BEFORE 0x00001000 Break Before Block HPB_TYPE_AFTER 0x00002000 Break After Block HPB_TYPE_INSIDE 0x00004000 Break Inside Block Page Information HPB_TYPE_SECTION_START 0x00010000 Starts a Section HPB_TYPE_SOFT_BREAK 0x00020000 Soft Page Break HPB_TYPE_SOFT_BLOCK 0x00040000 Breaks a Block |
||||
| Break Data (field only): | |||||
| bd_error | A set of flags containing any parse errors while loading the break data. The value is in hexadecimal form as a formatted error code. The lower word values are as follows: 01 – Error loading element 02 – Error translating page field code 03 – Incorrect field type 04 – Failure to read first element of footer 05 – Expected division tag not found in footer 06 – Could not locate free format footer closing element 07 – Failure to get first structure element in footer 08 – Could not locate table cell in footer 09 – Error reading footer cell 0A – Error reading next footer element 0B – Failure to read first element of header 0C – Expected division tag not found in header 0D – Could not locate free format header closing element 0E – Failure to get first structure element in header 0F – Could not locate table cell in header 10 – Error reading header cell 11 – Error reading next header element |
||||
| first_flag | Non zero if this is the first page. No footer for previous page. | ||||
| last_flag | Non zero if this is the last page. No header for next page. | ||||
| sequence | Sequence number as indicated by the page field. If the page fields require updating, this number may be out of sequence or otherwise incorrect. | ||||
| section | The section name, if the section has a name. | ||||
| sns_flag | Start New Section flag. Non-zero if the header in this group starts a new section. | ||||
| spb_flag | Indicates that this break is marked as a soft break. | ||||
| sbb_flag | Soft Block Break (mid para). The break split a paragraph. | ||||
| page_no | Starting page number. If present, indicates the next page number. | ||||
| Footer Data: | |||||
| f_format | Format of footer data. This information is not stored by the page field but rather interpreted based on the load of the field. The SDK/decimal values: HPB_FORMAT_AUTO -1 Auto (Based on A/B/C Cells) HPB_FORMAT_CENTER 0 Center HPB_FORMAT_LEFT 1 Left HPB_FORMAT_RIGHT 2 Right HPB_FORMAT_LEFT_RIGHT 3 Left/Right HPB_FORMAT_ALL 4 Left/Center/Right HPB_FORMAT_FREE_FORMAT 5 Unstructured HPB_FORMAT_MIXED 5 Mixed (dialog only) |
||||
| f_f | A string containing the free format data. | ||||
| f_a | If structured, the first item (left cell). | ||||
| f_b | If structured, the second item (center cell). | ||||
| f_c | If structured, the third item (right cell). | ||||
| f_sb | Space Before Footer as a CSS value. | ||||
| Header Data: | |||||
| h_format | Format of header data. See the footer format above. | ||||
| h_f | A string containing the free format data. | ||||
| h_a | If structured, the first item (left cell). | ||||
| h_b | If structured, the second item (center cell). | ||||
| h_c | If structured, the third item (right cell). | ||||
| h_sa | Space After Header as a CSS value. | ||||
