Chapter Nine — Dialog Functions (continued)

DataControlSetGridMode Function

Overview

The DataControlSetGridMode function sets the control’s grid display mode.

Syntax/Parameters

Syntax

int = DataControlSetGridMode ( int id, [int mode] );

Parameters

id

An int containing the control ID of the data control.

mode

An optional int specifying the grid mode. The default is DC_GRID_BOTH for vertical and horizontal lines.

Return Value

Returns an int as ERROR_NONE or a formatted error code on failure. Common error codes are as follows: ERROR_RANGE if id is an invalid control ID for the open dialog or ERROR_INVALID_HANDLE if no dialog is open. Use the GetLastError function to retrieve error information.

Remarks

The codes are as follows:

	Definition		Bitwise		Description
	DCC_GRID_NONE		0x00000000		No Grid Lines
	DCC_GRID_HORIZONTAL		0x00000001		Horizontal Grid Lines
	DCC_GRID_VERTICAL		0x00000002		Vertical Grid Lines
	DCC_GRID_BOTH		0x00000003		Both Grid Lines

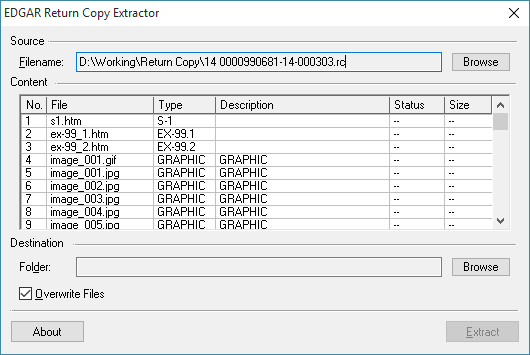

Example with gridlines:

Related Functions

DataControlRefreshLegends — Refreshes both column and row legends.

DataControlSetColumnFlags — Sets the display and behavior flags for a specific column.

DataControlSetColumnHeadings — Sets column headings for list box from an integer array or from a series of integers.

DataControlSetColumnPositions — Sets column positions for list box from an integer array or from a series of integers.

DataControlSetCellHighlight — Sets a highlight color for specified cell by row and column.

Platform Support

Go13, Go16, GoFiler Complete, GoFiler Corporate, GoFiler, GoFiler Lite, GoXBRL

Legato IDE, Legato Basic
