Chapter Three — Data Types and Operators (continued)
Overview
The ArrayGetAxisDepth function returns the number of elements used within a complete array or a specific axis.
Syntax/Parameters
Syntax
int = ArrayGetAxisDepth ( variable name, [int axis] );
Parameters
name
A name of a variable, which must be an array.
axis
An optional int specifying the axis to measure. The following are possible values:
| Define | Value | Description |
| AXIS_X/AXIS_ROW | 0 | X dimension (rows) |
| AXIS_Y/AXIS_COL | 1 | Y dimension (columns) |
| AXIS_Z | 2 | Z dimension |
| AXIS_ALL | -1 | All axes |
The default value is AXIS_X. Use -1 to retrieve the number of elements allocated for all dimensions of the array.
Return Value
Returns an int specifying the number of elements used or -1 on failure. Use the GetLastError function to retrieve a formatted error code.
Remarks
The depth is the highest index used. This number can be less than the number of elements allocated. An element is considered ‘used’ once it has been either referenced or assigned a value. If referenced as an index, all items with a lower value will also be considered used. For example:
string list[200];
int x1, x2, x3, size;
size = ArrayGetAxisSize(list);
x1 = ArrayGetAxisDepth(list);
list["first"] = "My String";
x2 = ArrayGetAxisDepth(list);
list[16] = "Farther in list";
x3 = ArrayGetAxisDepth(list);
MessageBox('I', "Size: %d\rBefore: %d\rOne key: %d\rSet at '16': %d", size, x1, x2, x3);

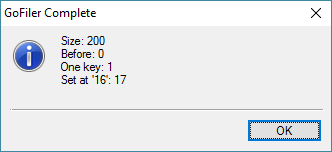

The result will be:
When retrieving all axis, each dimension is multiplied for a total number of elements.
Related Functions
Platform Support
Go13, Go16, GoFiler Complete, GoFiler Corporate, GoFiler, GoFiler Lite, GoXBRL
Legato IDE, Legato Basic
